MTP MPO Patch Cord

Current location：Home >> Products >> Fiber Optic Jumper >> MTP MPO Patch Cord

Multimode 24 Cores 40G Fiber Pluggable MPO MTP Cassette

Place of Origin: China
Brand Name: KNOFC
Certification: CE/ISO9001
Model Number: MPO-MPO 24F OM3
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: bag or customized

我要詢價

詳情介紹

Fiber Count:	24 Cores	Fiber Type:	SM/OM1/OM2/OM3/OM4/OM5
Quality:	100% Pass Test	Application:	FTTX
Jacket Material:	LSZH, PVC, OFNR, OFNP	Fiber Brand:	YOFC/ Fiber Home/ Corning/ KNOFC
Cable Length:	1M Or Customized	Operating Temperature:	-30°C To+60°C
High Light:	24 Cores MPO MTP Cassette, 40G Fiber Pluggable MPO MTP Cassette, 24 Core Mpo Fiber Cassette

Pluggable MPO MTP Cassette Patch Cord Multimode 24 Cores 40G Fiber

Description:

MPO/MTP patch cord are designed to high density multi fibers solutions,fit for different installation environment and easy to in-stall between the trunk line,data centers and buildings.Our patch cord are 100% factory tested and can meet your special requirements.All the MPO/MTP connects comply with Telcordia GR-1435-Core Compliant.Made of high quality cold-rolled steel, with surface nish of degreasing, pickling, phosphoric, powder coating. The thickness of powder coating is 80 n m -100 m m, complying with ROHS.With cable management and clear labels, easy to install, easy to manage, etc.More than four times the density of traditional patch panels, greatly saving cabinet space and improve the utilization of the cabinet , creating value for the construction of a modular data center architecture and upgrade the maintenance of cabling facilities.

Features:

High performance in IL&RL 100% pre-terminated tested.
Supports 40G and 100G network applications.
Jacket material: LSZH, OFNR, OFNP available.
Jacket color: Aqua,Yellow or customize.
Supports up to 4F,8F,12F, 24F, 48F, 72F, 96F, 144F, customized products are available.

Application:

Active dvice termination
Telecommunication networks
Metro
Local Area Networks(LANs)
Data Processing networks
Test Equipment
Premise installations
Wide Area Networks(WANs)

Connector Requirements:

Performance level

Standard

Elite

Connector	Mode	Endface	IL(max)(dB)	RL(max)(dB)	IL(max)(dB)	RL(max)(dB)
MPO/MTP	SM	PC	≤0.75	≥45	≤0.35	≥50
MPO/MTP	MM	PC	≤0.70	≥25	≤0.35	≥25

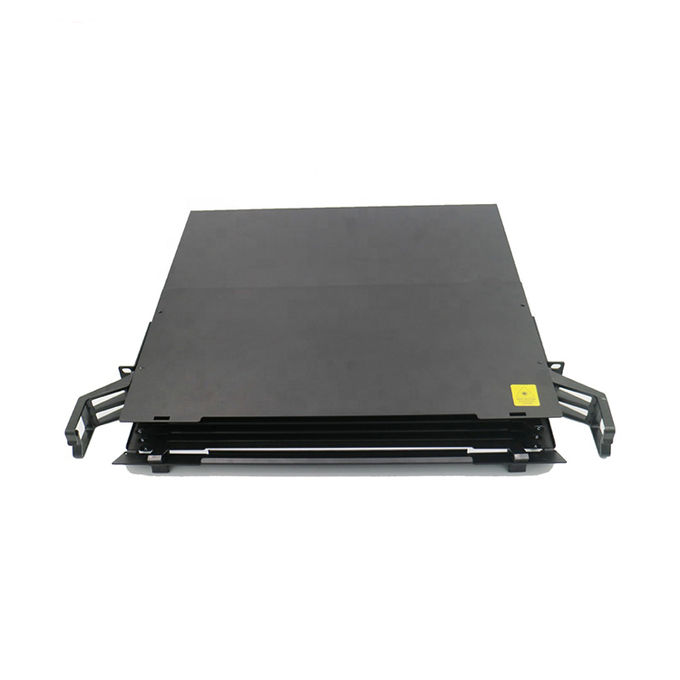

Multimode 24 Cores 40G Fiber Pluggable MPO MTP Cassette 0

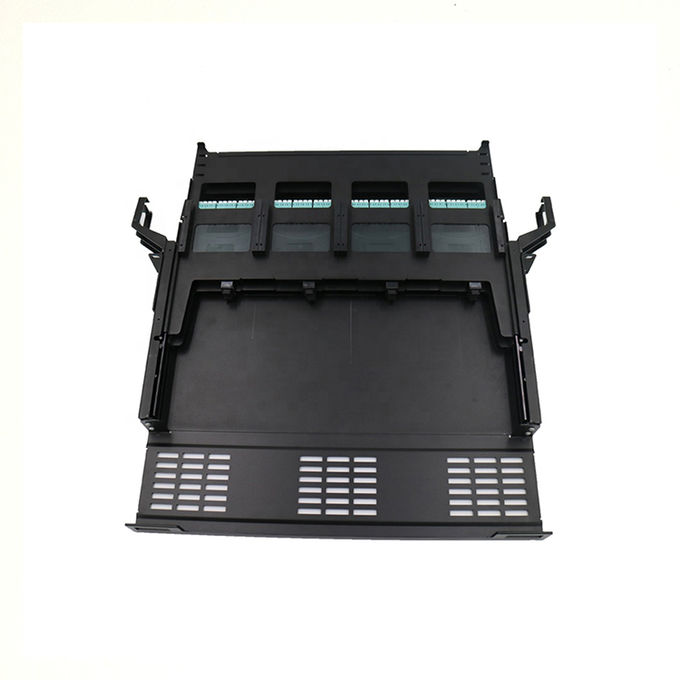

Multimode 24 Cores 40G Fiber Pluggable MPO MTP Cassette 1
